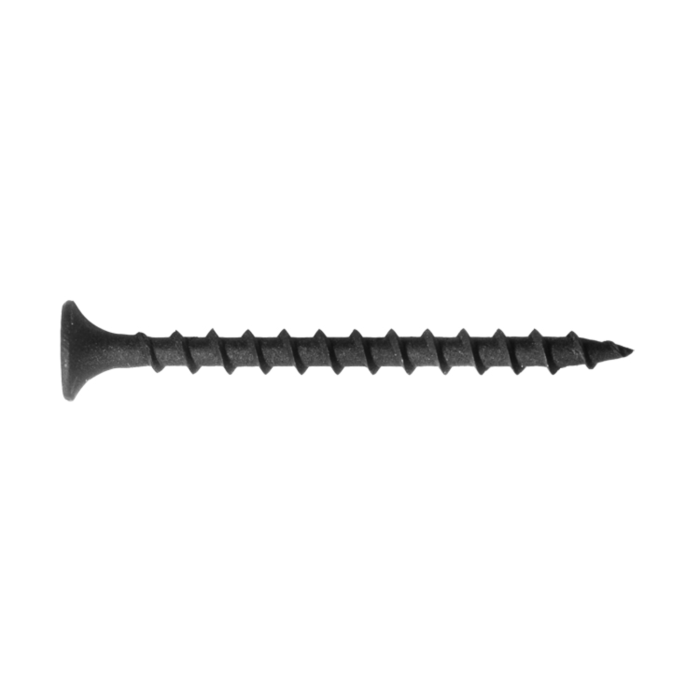

Bugle head drywall screw coarse thread for wooden constructions

51
.
01
GHS

A drywall screw for wooden structures is a specialized fastening element that is widely used in the construction and renovation industry. This type of screw is optimized for attaching plasterboards to wooden structures, which is typical in the construction of partition walls and ceilings inside buildings.

Intendent to use:

  • Drywall screws for wood structures are used in the following applications:
  • Installation of Partition Walls: Used to install plasterboards on wooden partition wall structures.
  • Ceiling installation: Used to attach boards to wooden frames of suspended ceilings.
  • Renovation Work: Perfect for renovation work where fixing or replacing drywall is required.
  • Finishing Projects: In residential and commercial construction, these screws are essential for finishing projects such as the installation of walls, ceilings and panels.

Benefits:

  • Quick Installation: Thanks to the cardboard thread and the sharp finger thread, the installation of plasterboards is quick and effective.
  • Solid Fastening: The screw design ensures solid fastening of the boards to wooden structures, which translates into durability.
  • Corrosion resistance: The anti-corrosion coating protects the screw against weather conditions, which extends its life.
  • Versatile Use: Suitable for a variety of wood construction applications, making it a versatile tool on the job.
  • Precise installation: The milling ring and Pan Head guarantee precise installation and aesthetic appearance of the mounted boards.

Recommended

Group
5101

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available
Diameter d [mm]
Length L [mm]
Packaging type
Head diameter D [mm]
Recess
Variety of coating
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Material index
More attributes

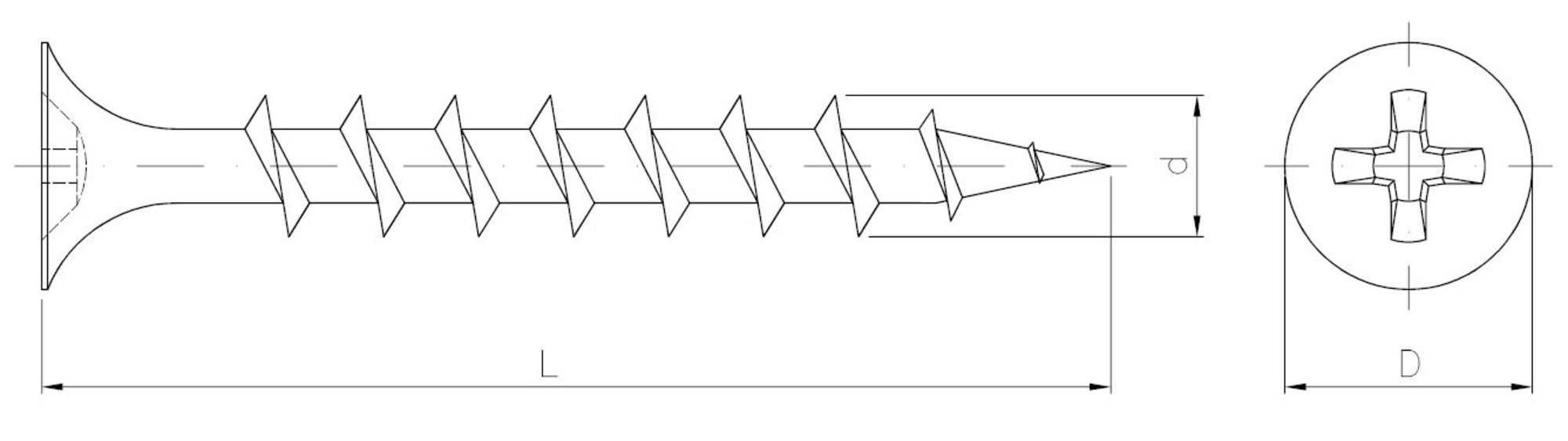

Diameter d [mm] Length L [mm] Packaging type Head diameter D [mm] Recess Variety of coating Unit of measure Availability Show More
5101035025PHFDXK
3.5 25 Cardboard 8.6 PH 2 phosphated coating KG
5101035035PHFDXK
3.5 35 Cardboard 8.6 PH 2 phosphated coating KG
5101035045PHFDXK
3.5 45 Cardboard 8.6 PH 2 phosphated coating KG
5101035055PHFDXK
3.5 55 Cardboard 8.6 PH 2 phosphated coating KG
5101039025PHF4WO
3.5 25 Bucket 8.6 PH 2 phosphated coating BOX
5101039025PHFK
3.5 25 Cardboard 8.6 PH 2 phosphated coating KG
5101039025PHFO
3.5 25 Cardboard 8.6 PH 2 phosphated coating BOX
5101039025PHFT
3.5 25 Bag 8.6 PH 2 phosphated coating THS
5101039025PHFTSMT
3.5 25 On the tape 8.6 PH 2 phosphated coating THS
5101039035PHF4WO
3.5 35 Bucket 8.6 PH 2 phosphated coating BOX
5101039035PHFK
3.5 35 Cardboard 8.6 PH 2 phosphated coating KG
5101039035PHFO
3.5 35 Cardboard 8.6 PH 2 phosphated coating BOX
5101039035PHFT
3.5 35 Bag 8.6 PH 2 phosphated coating THS
5101039035PHFTSMT
3.5 35 On the tape 8.6 PH 2 phosphated coating THS
5101039045PHF3WO
3.5 45 Bucket 8.6 PH 2 phosphated coating BOX
5101039045PHFK
3.5 45 Cardboard 8.6 PH 2 phosphated coating KG
5101039045PHFO
3.5 45 Cardboard 8.6 PH 2 phosphated coating BOX
5101039045PHFT
3.5 45 Cardboard 8.6 PH 2 phosphated coating THS
5101039045PHFTSMT
3.5 45 On the tape 8.6 PH 2 phosphated coating THS
5101039055PHF3WO
3.5 55 Bucket 8.6 PH 2 phosphated coating BOX
5101039055PHFK
3.5 55 Cardboard 8.6 PH 2 phosphated coating KG
5101039055PHFO
3.5 55 Cardboard 8.6 PH 2 phosphated coating BOX
5101039055PHFT
3.5 55 Bag 8.6 PH 2 phosphated coating THS
5101039055PHFTSMT
3.5 55 On the tape 8.6 PH 2 phosphated coating THS
5101042070PHFDXK
4.2 70 Cardboard 8.6 PH 2 phosphated coating KG
5101042070PHFK
4.2 70 Cardboard 8.6 PH 2 phosphated coating KG
5101042070PHFO
4.2 70 Cardboard 8.6 PH 2 phosphated coating BOX
5101042070PHFOWO
4.2 70 Cardboard 8.6 PH 2 phosphated coating BOX
5101042070PHFT
4.2 70 Bag 8.6 PH 2 phosphated coating THS
5101042070PHFWO
4.2 70 Bucket 8.6 PH 2 phosphated coating BOX
5101042090PHFDXK
4.2 90 Cardboard 8.6 PH 2 phosphated coating KG
5101042090PHFK
4.2 90 Cardboard 8.6 PH 2 phosphated coating KG
5101042090PHFO
4.2 90 Cardboard 8.6 PH 2 phosphated coating BOX
5101042090PHFT
4.2 90 Bag 8.6 PH 2 phosphated coating THS
5101048090PHFDXK
4.8 90 Cardboard 9.2 PH 2 phosphated coating KG
5101048100PHFDXK
4.8 100 Cardboard 9.2 PH 2 phosphated coating KG
5101048100PHFDXT
4.8 100 Cardboard 9.2 PH 2 phosphated coating THS
5101048100PHFK
4.8 100 Cardboard 9.2 PH 2 phosphated coating KG
5101048100PHFO
4.8 100 Cardboard 9.2 PH 2 phosphated coating BOX
5101048100PHFT
4.8 100 Cardboard 9.2 PH 2 phosphated coating THS
5101048120PHF1QO
4.8 120 Blister 9.2 PH 2 phosphated coating BOX
5101048120PHFDXK
4.8 120 Cardboard 9.2 PH 2 phosphated coating KG
5101048120PHFDXT
4.8 120 Cardboard 9.2 PH 2 phosphated coating THS
5101048120PHFK
4.8 120 Cardboard 9.2 PH 2 phosphated coating KG
5101048120PHFO
4.8 120 Cardboard 9.2 PH 2 phosphated coating BOX
5101048120PHFT
4.8 120 Cardboard 9.2 PH 2 phosphated coating THS
5101048140PHFDXK
4.8 140 Cardboard 9.2 PH 2 phosphated coating KG
5101048140PHFDXT
4.8 140 Cardboard 9.2 PH 2 phosphated coating THS
5101048140PHFK
4.8 140 Cardboard 9.2 PH 2 phosphated coating KG
5101048150PHFK
4.8 150 Cardboard 9.2 PH 2 phosphated coating KG
5101048160PHFDXK
4.8 160 Cardboard 9.2 PH 2 phosphated coating KG
5101048160PHFDXT
4.8 160 Cardboard 9.2 PH 2 phosphated coating THS
5101048160PHFK
4.8 160 Cardboard 9.2 PH 2 phosphated coating KG
